Joint Inference with Numpyro

In this notebook, we demonstrate how to use Numpyro to perform fully Bayesian inference over the hyperparameters of a Gaussian process model. We will look at a scenario where we have a structured mean function (a linear model) and a GP capturing the residuals. We will infer the parameters of both the linear model and the GP jointly.

import numpyro
numpyro.set_host_device_count(4)

from jax import config
import jax.numpy as jnp
import jax.random as jr
import matplotlib.pyplot as plt
import numpyro.distributions as dist
from numpyro.infer import (
    MCMC,
    NUTS,
    Predictive,
)

import gpjax as gpx
from gpjax.numpyro_extras import register_parameters

config.update("jax_enable_x64", True)

key = jr.key(123)

Data Generation

We generate a synthetic dataset that consists of a linear trend together with a locally periodic residual signal whose amplitude varies over time, an additional high-frequency component, and a local bump. This richer structure highlights how a GP can capture deviations from the explicit linear model.

N = 200
key_x, key_y = jr.split(key)
x = jnp.sort(jr.uniform(key_x, shape=(N, 1), minval=0.0, maxval=10.0), axis=0)

# True parameters for the linear trend
true_slope = 0.45
true_intercept = 1.5

# Structured residual signal captured by the GP
slow_period = 6.0
fast_period = 0.8
amplitude_envelope = 1.0 + 0.5 * jnp.sin(2 * jnp.pi * x / slow_period)
modulated_periodic = amplitude_envelope * jnp.sin(2 * jnp.pi * x / fast_period)
high_frequency_component = 0.3 * jnp.cos(2 * jnp.pi * x / 0.35)
localised_bump = 1.2 * jnp.exp(-0.5 * ((x - 7.0) / 0.45) ** 2)

linear_trend = true_slope * x + true_intercept
residual_signal = modulated_periodic + high_frequency_component + localised_bump
y_clean = linear_trend + residual_signal

# Observations with homoscedastic noise
observation_noise = 0.3
y = y_clean + observation_noise * jr.normal(key_y, shape=x.shape)

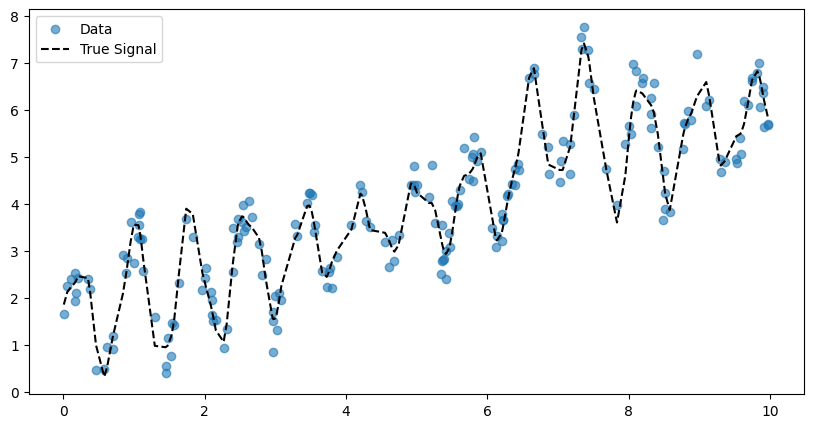

plt.figure(figsize=(10, 5))
plt.scatter(x, y, label="Data", alpha=0.6)
plt.plot(x, y_clean, "k--", label="True Signal")
plt.legend()
# plt.show()

<matplotlib.legend.Legend at 0x7ff49effae50>

png

Model Definition

We define a GP model with a generic mean function (zero for now, as we will handle the linear trend explicitly in the Numpyro model) and a kernel that is the product of a periodic kernel and an RBF kernel. This choice reflects our prior knowledge that the signal is locally periodic.

# Define priors
lengthscale_prior = dist.LogNormal(0.0, 1.0)
variance_prior = dist.LogNormal(0.0, 1.0)
period_prior = dist.LogNormal(0.0, 0.5)
noise_prior = dist.LogNormal(0.0, 1.0)

# We can explicitly attach priors to the parameters
lengthscale = gpx.parameters.PositiveReal(1.0, prior=lengthscale_prior)
variance = gpx.parameters.PositiveReal(1.0, prior=variance_prior)
period = gpx.parameters.PositiveReal(1.0, prior=period_prior)
noise = gpx.parameters.NonNegativeReal(1.0, prior=noise_prior)

# Define Kernel with priors
stationary_component = gpx.kernels.RBF(
    lengthscale=lengthscale,
    variance=variance,
)
periodic_component = gpx.kernels.Periodic(
    lengthscale=lengthscale,
    period=period,
)
kernel = stationary_component * periodic_component

meanf = gpx.mean_functions.Constant()
prior = gpx.gps.Prior(mean_function=meanf, kernel=kernel)

# We will use a ConjugatePosterior since we assume Gaussian noise
likelihood = gpx.likelihoods.Gaussian(
    num_datapoints=N,
    obs_stddev=gpx.parameters.NonNegativeReal(1.0, prior=dist.LogNormal(0.0, 1.0)),
)
posterior = prior * likelihood

# We initialise the model parameters.
# Note: These values will be overwritten by Numpyro samples during inference.
D = gpx.Dataset(X=x, y=y)

Joint Inference Loop

We define a Numpyro model function that: 1. Samples the parameters for the linear trend. 2. Computes the residuals (Data - Linear Trend). 3. Samples the GP hyperparameters using register_parameters. 4. Computes the GP marginal log-likelihood on the residuals. 5. Adds the GP log-likelihood to the joint density.

def model(X, Y, X_new=None):
    # 1. Sample linear model parameters
    slope = numpyro.sample("slope", dist.Normal(0.0, 2.0))
    intercept = numpyro.sample("intercept", dist.Normal(0.0, 2.0))

    # Calculate residuals
    trend = slope * X + intercept
    residuals = Y - trend

    # 2. Register GP parameters
    # This automatically samples parameters from the GPJax model
    # and returns a model with updated values.
    # We attached priors to the parameters during model definition,
    # so register_parameters will use those.
    # register_parameters modifies the model in-place (and returns it).
    # Since Numpyro re-runs this function, we are overwriting the parameters
    # of the same object repeatedly, which is fine as they are completely determined
    # by the sample sites.
    p_posterior = register_parameters(posterior)

    # Create dataset for residuals
    D_resid = gpx.Dataset(X=X, y=residuals)

    # 3. Compute MLL
    # We use conjugate_mll which computes log p(y | X, theta) analytically for Gaussian likelihoods.
    mll = gpx.objectives.conjugate_mll(p_posterior, D_resid)

    # 4. Add to potential
    numpyro.factor("gp_log_lik", mll)

    # Optional prediction branch for use with Predictive
    if X_new is not None:
        latent_dist = p_posterior.predict(X_new, train_data=D_resid)
        f_new = numpyro.sample("f_new", latent_dist)
        f_new = f_new.reshape((-1, 1))
        total_prediction = slope * X_new + intercept + f_new
        numpyro.deterministic("y_pred", total_prediction)
        return total_prediction

Running MCMC

We use the NUTS sampler to draw samples from the posterior.

nuts_kernel = NUTS(model)
mcmc = MCMC(nuts_kernel, num_warmup=1500, num_samples=2000, num_chains=4, chain_method="parallel")
mcmc.run(jr.key(123), x, y)

mcmc.print_summary()

                                          mean       std    median      5.0%     95.0%     n_eff     r_hat
                           intercept      1.11      1.05      1.15     -0.63      2.80   4410.93      1.00
               likelihood.obs_stddev      0.33      0.02      0.33      0.30      0.37   6843.21      1.00
  prior.kernel.kernels.0.lengthscale      1.13      0.14      1.12      0.91      1.35   3715.72      1.00
     prior.kernel.kernels.0.variance      2.83      1.34      2.54      0.99      4.56   3585.15      1.00
       prior.kernel.kernels.1.period      0.74      0.01      0.74      0.72      0.76   5394.24      1.00
                               slope      0.49      0.18      0.49      0.20      0.78   4133.35      1.00

Number of divergences: 0

Analysis and Plotting

We extract the samples and plot the predictions.

# Draw posterior samples for downstream use
samples = mcmc.get_samples()

# Create predictive utility that reuses the original model
predictive = Predictive(
    model,
    posterior_samples=samples,
    return_sites=["y_pred"],
)

# Generate predictions
predictions = predictive(jr.key(1), x, y, X_new=x)
y_pred = predictions["y_pred"]

# Compute statistics
mean_prediction = jnp.mean(y_pred, axis=0)
std_prediction = jnp.std(y_pred, axis=0)

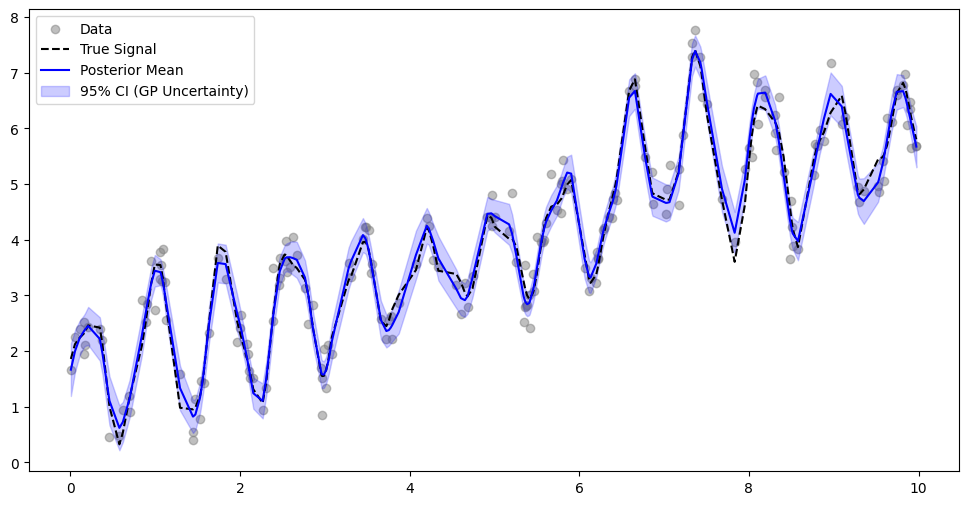

# Plot
plt.figure(figsize=(12, 6))
plt.scatter(x, y, alpha=0.5, label="Data", color="gray")
plt.plot(x, y_clean, "k--", label="True Signal")

plt.plot(x, mean_prediction, "b-", label="Posterior Mean")
plt.fill_between(
    x.flatten(),
    mean_prediction.flatten() - 2 * std_prediction.flatten(),
    mean_prediction.flatten() + 2 * std_prediction.flatten(),
    color="b",
    alpha=0.2,
    label="95% CI (GP Uncertainty)",
)

plt.legend()
# plt.show()

<matplotlib.legend.Legend at 0x7ff49d836d50>

png
