Structural Shocks in the Atmosphere¶
A reduced-form VAR tells you that variables move together, but not why. Structural identification imposes causal assumptions to decompose forecast errors into interpretable shocks. In macroeconomics, the ordering of variables is endlessly debated. In atmospheric science, the physics gives us a defensible answer.
This tutorial fits a Bayesian VAR to daily weather observations from the Cabauw Mast, a 213-metre atmospheric research tower in the Netherlands operated by KNMI. We identify structural shocks using a Cholesky decomposition ordered by physical causation, then trace their effects through impulse response functions, forecast error variance decomposition, and historical decomposition.
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from impulso import VAR, VARData, select_lag_order
from impulso.identification import Cholesky
from impulso.samplers import NUTSSampler
Load and rescale¶
The data file contains daily observations from KNMI station 348 (Cabauw), covering January 2020 to February 2026. KNMI reports temperature, pressure, and wind speed in tenths of their natural units, so we rescale on ingestion.
| Variable | Code | Raw unit | Rescaled |
|---|---|---|---|
| Sea-level pressure | PG | 0.1 hPa | hPa |
| Wind speed | FG | 0.1 m/s | m/s |
| Temperature | TG | 0.1 C | C |
| Relative humidity | UG | % | % |
df = pd.read_csv(
"data/cabauw_mast.txt",
comment="#",
skipinitialspace=True,
usecols=[1, 2, 3, 4, 5],
names=["date", "wind", "temperature", "pressure", "humidity"],
header=0,
dtype={"date": str},
)
df["date"] = pd.to_datetime(df["date"].str.strip(), format="%Y%m%d")
df = df.set_index("date").sort_index()
df["temperature"] = df["temperature"] / 10
df["pressure"] = df["pressure"] / 10
df["wind"] = df["wind"] / 10
df = df[["pressure", "wind", "temperature", "humidity"]].dropna()
df.describe().round(1)
| pressure | wind | temperature | humidity | |
|---|---|---|---|---|
| count | 2239.0 | 2239.0 | 2239.0 | 2239.0 |
| mean | 1015.2 | 4.2 | 11.2 | 81.6 |
| std | 10.3 | 2.0 | 6.0 | 10.4 |
| min | 974.5 | 0.9 | -5.5 | 40.0 |
| 25% | 1009.0 | 2.8 | 6.7 | 76.0 |
| 50% | 1015.9 | 3.8 | 11.0 | 83.0 |
| 75% | 1022.2 | 5.2 | 16.2 | 89.0 |
| max | 1046.8 | 13.8 | 28.4 | 99.0 |
Remove the seasonal cycle¶
Temperature has a strong annual cycle that violates VAR stationarity assumptions. Pressure and humidity also have weaker seasonal patterns. We remove these by fitting a harmonic regression - two pairs of sine and cosine terms at annual and semi-annual frequencies - to each variable and subtracting the fitted values. The residuals are the anomalies we model.
doy = df.index.day_of_year.values
omega = 2 * np.pi / 365.25
X_season = np.column_stack([
np.ones(len(doy)),
np.sin(omega * doy),
np.cos(omega * doy),
np.sin(2 * omega * doy),
np.cos(2 * omega * doy),
])
anomalies = pd.DataFrame(index=df.index)
climatology = pd.DataFrame(index=df.index)
for col in df.columns:
y = df[col].values
beta, *_ = np.linalg.lstsq(X_season, y, rcond=None)
fitted = X_season @ beta
climatology[col] = fitted
anomalies[col] = y - fitted

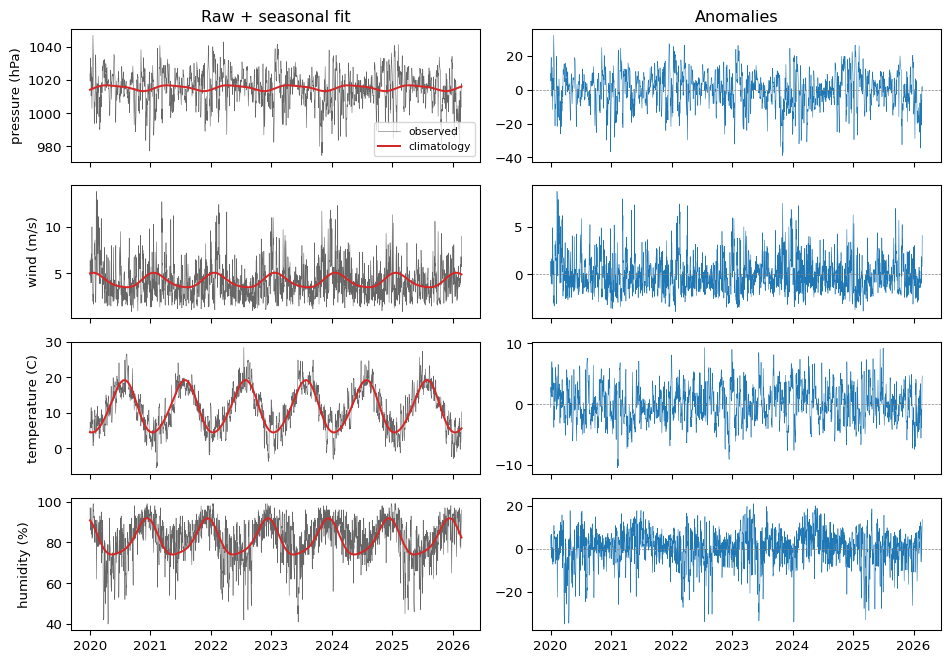

The left column below shows each raw series with its fitted seasonal cycle overlaid in red; the right column shows the resulting anomalies. Notice how the annual swing in temperature (roughly ±10°C) dominates the raw series but is absent from the anomalies, leaving only the day-to-day fluctuations driven by passing weather systems.
fig, axes = plt.subplots(4, 2, figsize=(10, 7), sharex="col")
units = {"pressure": "hPa", "wind": "m/s", "temperature": "C", "humidity": "%"}
for i, col in enumerate(df.columns):
axes[i, 0].plot(df.index, df[col], linewidth=0.4, color="0.4", label="observed")
axes[i, 0].plot(df.index, climatology[col], color="C3", linewidth=1.5, label="climatology")
axes[i, 0].set_ylabel(f"{col} ({units[col]})")
if i == 0:
axes[i, 0].legend(fontsize=8)
axes[i, 0].set_title("Raw + seasonal fit")
axes[i, 1].plot(df.index, anomalies[col], linewidth=0.4, color="C0")
axes[i, 1].axhline(0, color="0.5", linewidth=0.5, linestyle="--")
if i == 0:
axes[i, 1].set_title("Anomalies")
fig.tight_layout()
Build the VAR dataset¶
We pass the anomalies to VARData.from_df(). The column order --
pressure, wind, temperature, humidity -- will carry through to the Cholesky
identification later.
data = VARData.from_df(anomalies, endog=["pressure", "wind", "temperature", "humidity"])
data
VARData(endog=array([[ 9.64830648, -0.20866846, -0.51723724, 6.14473059],
[ 5.01230309, 1.38446876, 2.8035835 , 0.24097968],
[15.97581465, -0.12204568, 1.92249927, 0.34132409],
...,
[-0.04194567, 0.77564679, 0.3528681 , 6.17397374],
[ 1.8261302 , 1.38544071, 3.79884319, 8.3680157 ],
[-0.80520377, 4.09547869, 4.64364881, 13.56147305]],
shape=(2239, 4)), endog_names=['pressure', 'wind', 'temperature', 'humidity'], exog=None, exog_names=None, index=DatetimeIndex(['2020-01-02', '2020-01-03', '2020-01-04', '2020-01-05',
'2020-01-06', '2020-01-07', '2020-01-08', '2020-01-09',
'2020-01-10', '2020-01-11',
...
'2026-02-13', '2026-02-14', '2026-02-15', '2026-02-16',
'2026-02-17', '2026-02-18', '2026-02-19', '2026-02-20',
'2026-02-21', '2026-02-22'],
dtype='datetime64[us]', name='date', length=2239, freq=None))
Select lag order¶
We test lags 1 through 14 using information criteria. Synoptic weather systems take roughly 5--7 days to cross the Netherlands, so we expect the optimal lag to fall in that range.
ic = select_lag_order(data, max_lags=14)
print(f"AIC selects {ic.aic} lag(s), BIC selects {ic.bic} lag(s), HQ selects {ic.hq} lag(s)")
ic.summary()
AIC selects 3 lag(s), BIC selects 2 lag(s), HQ selects 3 lag(s)
| aic | bic | hq | |
|---|---|---|---|
| lag | |||
| 1 | 9.093343 | 9.144400 | 9.111983 |
| 2 | 8.904730 | 8.996668 | 8.938297 |
| 3 | 8.880080 | 9.012928 | 8.928584 |
| 4 | 8.885383 | 9.059170 | 8.948836 |
| 5 | 8.889046 | 9.103805 | 8.967460 |
| 6 | 8.894238 | 9.149997 | 8.987624 |
| 7 | 8.900443 | 9.197233 | 9.008814 |
| 8 | 8.906108 | 9.243960 | 9.029475 |
| 9 | 8.915200 | 9.294143 | 9.053575 |
| 10 | 8.921660 | 9.341725 | 9.075054 |
| 11 | 8.931019 | 9.392238 | 9.099445 |
| 12 | 8.942743 | 9.445144 | 9.126212 |
| 13 | 8.947023 | 9.490638 | 9.145548 |
| 14 | 8.953962 | 9.538822 | 9.167554 |
Fit the Bayesian VAR¶
AIC and Hannan–Quinn both prefer 3 lags, while BIC prefers 2. We proceed with the more parsimonious BIC choice - two lags captures the primary day-to-day persistence while keeping the parameter space manageable (4 variables × 2 lags × 4 equations = 32 autoregressive coefficients plus intercepts and the covariance matrix).
We use a Minnesota prior, which shrinks cross-variable coefficients toward zero and higher-lag coefficients toward zero. This is a natural regularisation choice as it encodes the belief that each variable's own recent past is its best predictor, while allowing the data to reveal cross-variable dynamics where the evidence is strong. Sampling uses the NUTS algorithm across 4 chains.
sampler = NUTSSampler(draws=2500, tune=1000, chains=4, cores=1, random_seed=123)
fitted = VAR(lags=ic.bic, prior="minnesota").fit(data, sampler=sampler)
fitted
Initializing NUTS using jitter+adapt_diag... Sequential sampling (4 chains in 1 job) NUTS: [intercept, B, sigma_sd, tril_offdiag]
Output()
Sampling 4 chains for 1_000 tune and 2_500 draw iterations (4_000 + 10_000 draws total) took 74 seconds.
FittedVAR(n_lags=2, n_vars=4, n_draws=2500, n_chains=4)
Cholesky identification¶
A reduced-form VAR captures correlations between forecast errors, but it cannot distinguish cause from effect within a single time step. The Cholesky decomposition resolves this by imposing a recursive causal ordering: variables higher in the list can affect variables below them contemporaneously, but not vice versa. The ordering encodes which variables can affect which others within a single day:
- Pressure is most exogenous. Sea-level pressure at Cabauw is governed by synoptic-scale circulation far from the station; nothing at the local level feeds back into it within a day.
- Wind responds mechanically to the pressure gradient within the same day but does not contemporaneously cause pressure changes.
- Temperature is affected by the synoptic regime (pressure) and by advection and turbulent mixing (wind), but does not drive either within a day.
- Humidity is most endogenous. Relative humidity depends on temperature (Clausius–Clapeyron), moisture advection (wind), and frontal moisture (pressure).
Unlike in macroeconomics, where the ordering of GDP, inflation, and interest rates is a matter of ongoing debate, the atmospheric physics provides a principled and defensible identification.
identified = fitted.set_identification_strategy(Cholesky(ordering=["pressure", "wind", "temperature", "humidity"]))
identified
IdentifiedVAR(n_lags=2, n_vars=4, n_draws=2500, n_chains=4)
Impulse response functions¶
An IRF traces how a one-standard-deviation structural shock propagates through the system over subsequent time steps. Each panel in the grid below shows the response of one variable (row) to a shock in another (column), out to 14 days — enough to capture the full lifecycle of a typical synoptic weather event. The shaded band is the 94% posterior credible interval.
irf = identified.impulse_response(horizon=14)
fig = irf.plot()

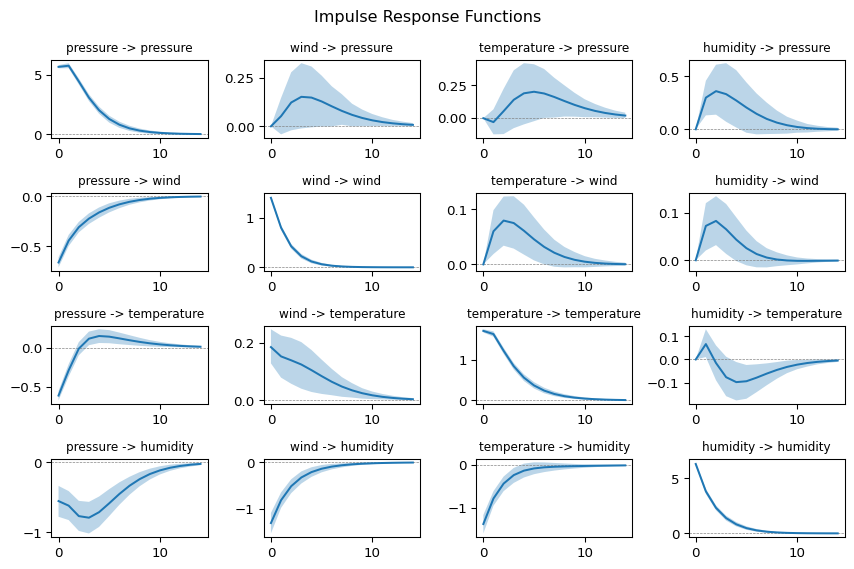

Each panel in this grid shows how one weather variable at the Cabauw research tower responds over the following 14 days to an unexpected one-day disturbance in another, after seasonal patterns have been removed. The first column — the effects of a pressure shock — tells the clearest story. An anomalous rise in pressure of about 6 hPa (typical of an unexpected high-pressure system) causes wind speeds to drop by around 0.6 m/s as pressure gradients weaken, temperatures to initially fall by roughly 0.7°C as clear skies allow heat to radiate away overnight, and relative humidity to drop by about 1 percentage point as subsiding air dries out the atmosphere. These effects unfold over 2–5 days and then gradually fade, mirroring the timescale on which weather systems pass through the Netherlands.
The model also recovers a fundamental thermodynamic relationship directly from the data: an unexpected rise in temperature causes a sharp and persistent drop in relative humidity (bottom of column 3). This reflects the Clausius–Clapeyron effect — warmer air can hold more moisture, so if the amount of water vapour stays roughly constant but the air warms, relative humidity falls. The response is large (around 1.5 percentage points per °C) and persists for over 10 days, making it the single cleanest signal in the entire analysis.
Taken together, the impulse responses paint a physically coherent picture: large-scale pressure is a dominant driver of local conditions, wind acts as a mediator between the large-scale flow and surface weather, temperature responds to both but carries its own strong persistence through surface heat storage, and humidity sits at the end of the chain — reacting to everything else but driving relatively little itself. The fact that a purely statistical model, identified only by a plausible ordering of the variables, recovers these well-understood atmospheric mechanisms without any built-in physics is a compelling demonstration of what structural VAR models can do.
Forecast error variance decomposition¶
The FEVD answers a different question: if I try to forecast each variable and get it wrong, where did the error come from? Each panel below decomposes forecast uncertainty for one variable into contributions from shocks to all four variables, over a 14-day horizon.
fevd = identified.fevd(horizon=14)
fig = fevd.plot()

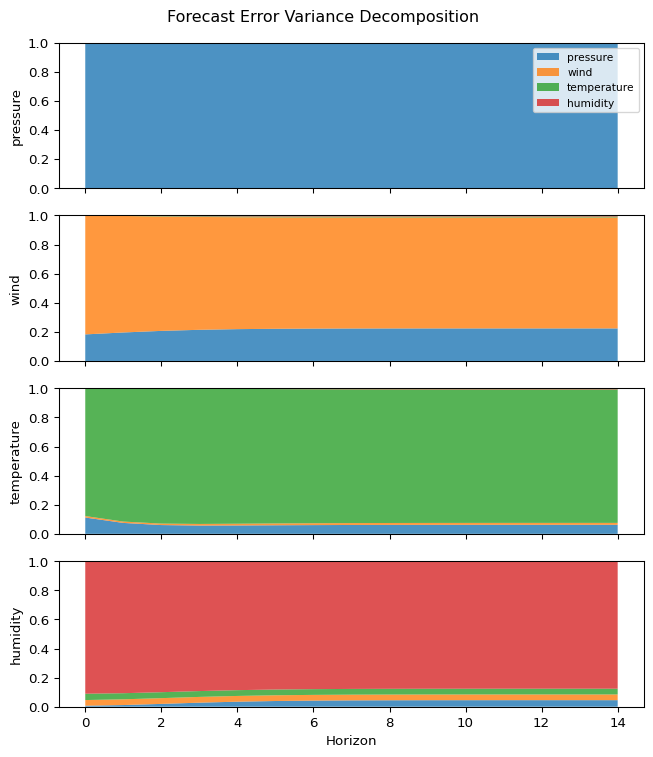

The dominant pattern is that each variable is primarily driven by its own shocks — the diagonal dominates everywhere. But the asymmetries are what matter. Pressure is almost 100% self-driven at all horizons: nothing in the local system feeds back into it, confirming its role as the most exogenous variable. Wind is mostly self-driven but with a steady ~20% contribution from pressure, reflecting the influence of large-scale pressure gradients on local wind speeds. Temperature is overwhelmingly self-driven (~90%+), consistent with the strong persistence from surface heat storage seen in the IRFs.
Humidity is the most interesting panel because it's the only variable where other shocks make a visible contribution — pressure accounts for a growing ~10% share, with thin slivers from wind and temperature. This confirms humidity as the most endogenous variable in the system, absorbing influences from the rest through subsidence drying (pressure) and the Clausius–Clapeyron effect (temperature). The overall picture validates the Cholesky ordering: the causal flow runs predominantly from pressure through to humidity, not the other way around.
Historical decomposition¶
The IRFs and FEVD describe the system's average dynamics. The historical decomposition goes further: it attributes the actual observed value of each variable at each point in time to the cumulative effect of each structural shock. This lets you answer narrative questions — for instance, which shocks drove a particular cold snap or an unusually calm week?
hd = identified.historical_decomposition()
fig = hd.plot()
plt.savefig("historical_decomposition.png", dpi=300, bbox_inches="tight")

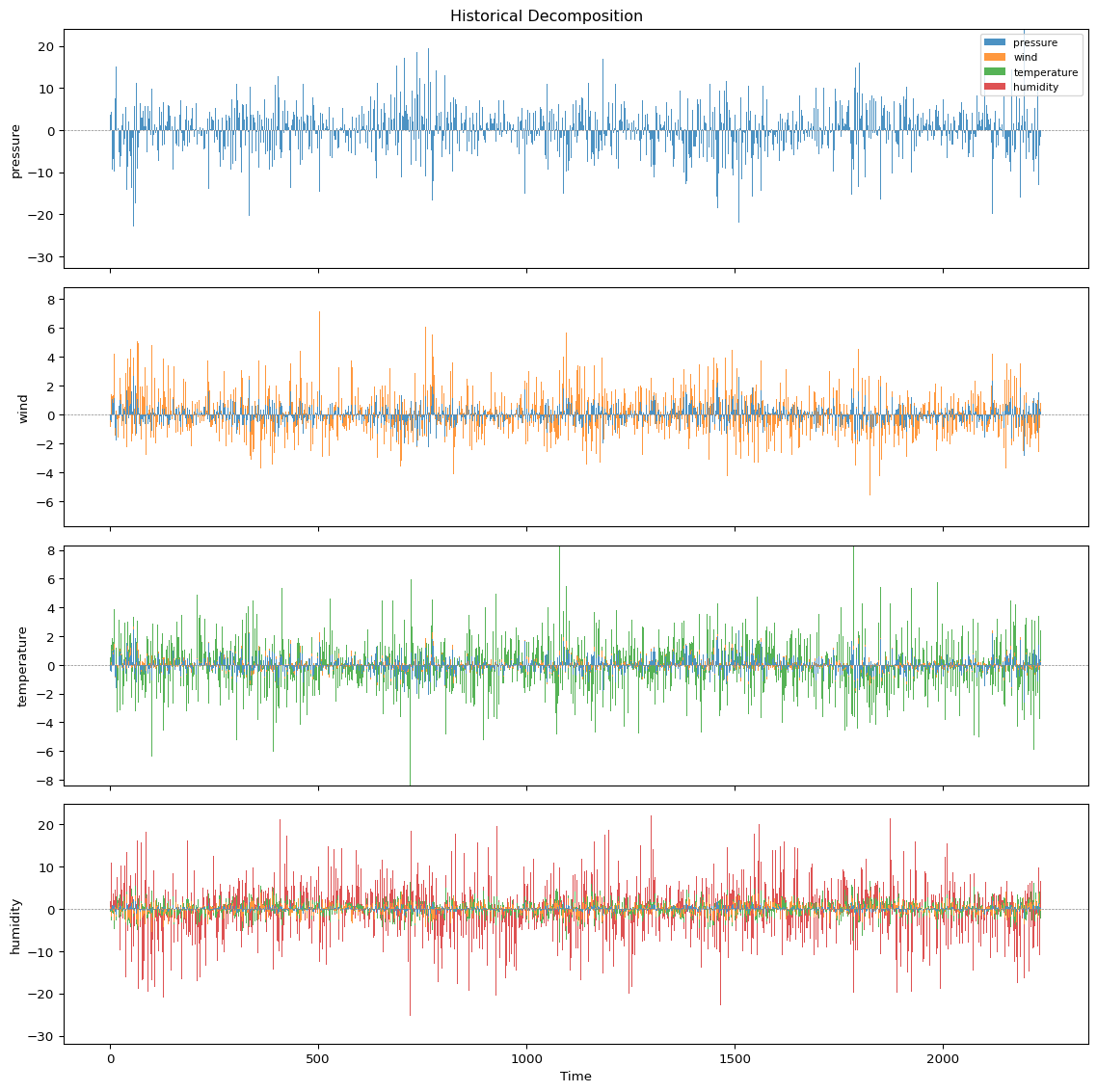

Each panel decomposes one variable's daily anomaly into the contributions of the four structural shocks. Pressure (top) is almost entirely its own colour — its anomalies are driven by large-scale synoptic forcing with negligible feedback from local wind, temperature, or humidity. Wind (second) is also dominated by its own shocks, but a steady blue undercurrent from pressure is visible, consistent with the mechanical link between pressure gradients and wind speed. Temperature (third) shows a similar pattern: mostly self-driven through surface heat storage, with occasional pressure contributions during strong synoptic episodes. Humidity (bottom) is the most mixed panel — its own shocks dominate the high-frequency variation, but contributions from pressure and temperature are clearly visible, reflecting how frontal passages and the Clausius–Clapeyron effect modulate relative humidity on specific days. The spikiest events in each panel correspond to the passage of intense weather systems, and reading across panels for the same time period reveals how a single synoptic event propagates through the causal chain.
Summary¶
This tutorial demonstrated the full structural VAR workflow on real atmospheric data:
- Load and clean daily observations from KNMI's Cabauw Mast
- Remove seasonality with harmonic regression to obtain stationary anomalies
- Select lag order using information criteria (BIC selected 2 lags)
- Fit a Bayesian VAR with
VAR(lags=..., prior="minnesota").fit(data, sampler) - Identify structural shocks with
Cholesky(ordering=[...]) - Analyse causal dynamics with
.impulse_response(),.fevd(), and.historical_decomposition()
The atmospheric setting is particularly well-suited to structural VAR analysis because
the physics provides an unambiguous causal ordering — something rarely available in
economics or finance. The same workflow applies to any domain where you can defend a
contemporaneous causal ordering. For identification schemes that do not rely on a
recursive ordering, Impulso also supports sign restrictions via SignRestriction.
